Windshield Ventilator Ratchet Stop
Part Number 671385

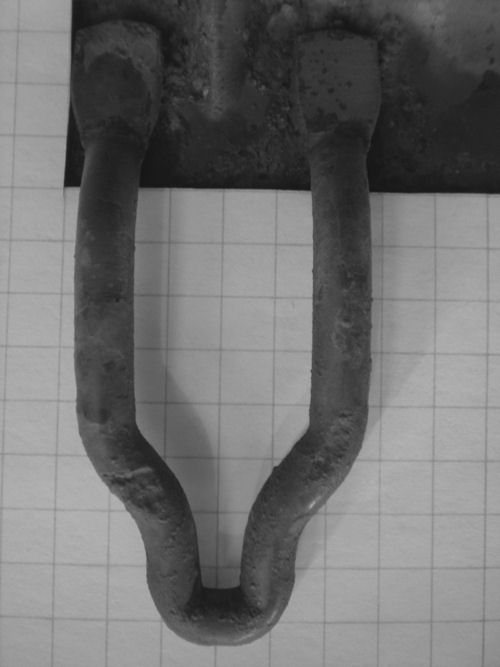

This component of the CJ-3A windshield vent mechanism is often broken due to the thin area just below the flattened portion of the stop. The stop is made from 1/4" diameter, low carbon, soft basic wire. In the photo below an L shaped piece of 1/4" square graph paper was inserted under the Stop to illustrate it's dimensions.

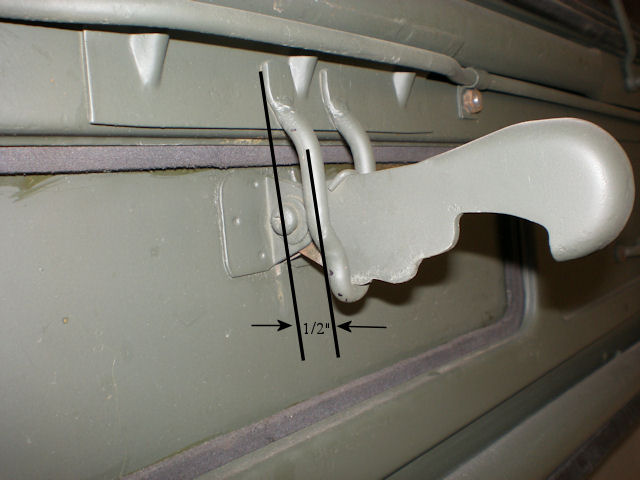

The Stop also has a 1/2" offset bend, measured from the surface where it is attached, to the center line of the wire.

Thanks to Keith Buckley for his help with this information.
